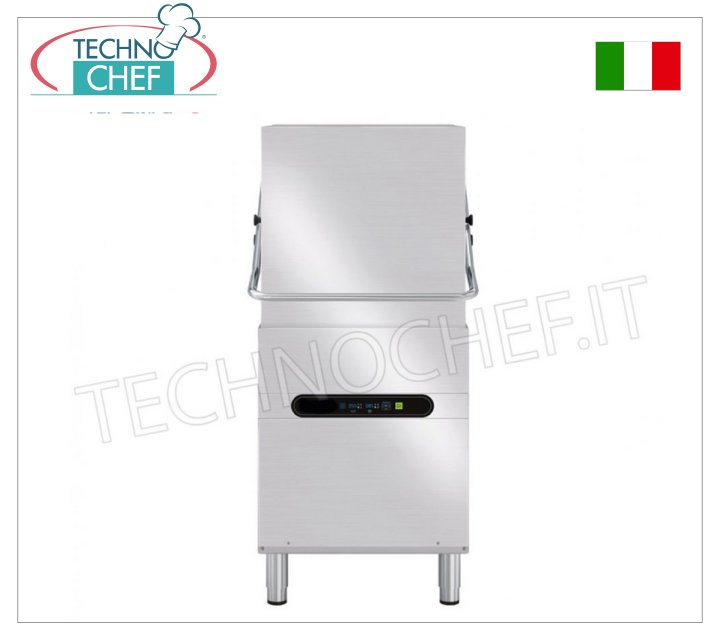

TECHNOCHEF - Hood dishwasher, digital controls, max 60 baskets/hour

DISHWASHER with LIFTING HOOD in ENHANCED VERSION with 600x500mm SQUARE rack, max output of 60 racks/hour, DIGITAL CONTROLS :
.

• The bodywork is entirely made of AISI 304 steel and has been designed with all the components in the front part to allow easy assistance by the technician;
• Digital controls with display ;
• 4 wash cycles of 60/90/120/240 seconds ;
• Max useful height : plates 400mm , pots 395mm,
• Suitable for 600x400 mm trays (pizza-pastry);
• 60 liter bread baskets (H=400),
• Stainless steel washing impellers diameter 30 mm. with molded helical castings;
• Stainless steel rinse impeller with adjustable rotation speed;
• Adjustable electric rinse aid dispenser;
• Adjustable electric washing detergent dispenser;
• Stainless steel washing detergent injector welded onto the tank;
• Pump filter ;
• 2-piece full-tank stainless steel integral filter ;
• Control system via electronic card with simple and extremely efficient Dip-Switch ,
• Setting and control of washing and rinsing temperatures ,
• Adjustable Thermostop function which guarantees better results,
• Display showing temperatures and selected wash cycle ,
• Intelligent Start button ,
• Self-diagnosis system ,
• The electronic control allows you to manage various parameters to give you a great level of customization based on your needs while the self-diagnosis allows you to reduce machine downtime to a minimum by already suggesting some simple operations to perform to resolve the situation,
• Scheduled Maintenance Notice ,
• Automatic additional rinse cycle,
• 1 Automatic drain cycle (with drain pump installed),
• Adjustable drain and rinse time,
• Temperature reading via precise NTC probes,
• Stainless steel washing and rinsing impellers,
• Double detergent and rinse aid dispenser installed as standard ,

• Double wall molded tub with capacity of liters. 37;
• Tank resistance Kw.4.5,
• Boiler capacity 7.3 litres,
• Boiler resistance Kw.5.4,
• 1.34 kW (1.8 Hp) washing pump,
• Recommended water hardness 7÷10 °f,
• Water consumption per cycle at 2 bar: 2.0 lt.

Supplied:

• 1 basket for 22 plates, dim mm. 500x600x100h
• 1 basket for glasses, dim mm. 500x600x100h
• 1 cutlery basket with 8 places
• 1 tray basket 10/12 places dim.mm.500x600x100h.
• 2 integral tank filters

Accessories/Options :

• 23138 - 0.5 Hp pressure pump kit.
• 18698 - Kit of 4 adjustable stainless steel feet 50-70 mm.
• 17516 - Pressure pump installed 0.5 Hp
• 21116 - Drain pump installed 32W.
• 22440 - 32W drain pump.

CE mark

Made in Italy
