You are here: Home page / Cold storage rooms and refrigerators / wine coolers / Wooden refrigerated wine cabinets / CELLAR-CABINET for WINE capacity 24 bottles Horizontal, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION, SLIM Line, 36 cm deep
click to enlarge
+ Visualizza altre immagini

CELLAR-CABINET for WINE capacity 24 bottles Horizontal, Static-Ventilated, 3 Glass Sides for WALL INSTALLATION, SLIM Line, 36 cm deep

SLIDING DOORS on 1 Front, Suitable for WHITE and RED WINES, Configurable in USE: VENTILATED or STATIC MULTI-TEMPERATURE, Adjustable temperature from: +4° to +16° C. - Set-ups with CHOICE OF FRAMES, V.230/1, Kw. 0.15, weight 59 kg, dim.mm.860x362x897h

professional description

CELLAR-CASES for WINE, Capacity 24 Horizontal Bottles, STATIC or VENTILATED REFRIGERATION, suitable for WHITE or RED WINES, SLIM Line, 36 cm deep:


.

  • aluminum structure ,
  • interior in Aluminium,
  • sliding doors, sides and top in double glazing ,
  • ECOLGICO refrigeration unit with GAS R 600a
  • digital thermoregulator from: +4°+16°C ;
  • automatic defrost , automatic condensation evaporation,
  • inverter compressor ,
  • innovative refrigeration system based on the positioning of the cooling coil inside the refrigerated compartment behind the rear panel which guarantees better storage conditions ,
  • SLIDING glass DOORS on 1 FRONT ,
  • anti-fog system doors ;
  • natural white LED lighting on the uprights ,
  • key lock ,
  • anti-vibration system ,
  • Ambient Temperature: +25°, MAX for WHITE WINES
  • Ambient Temperature: +30°, MAX for RED WINES

.

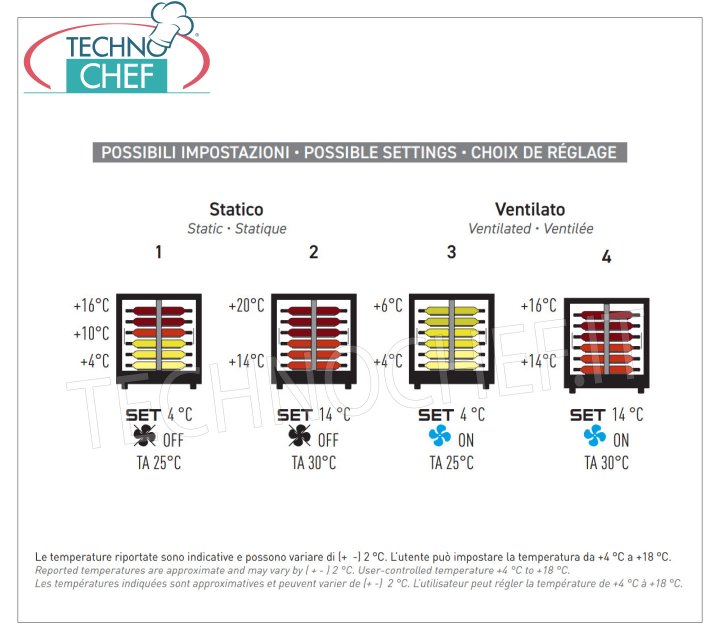

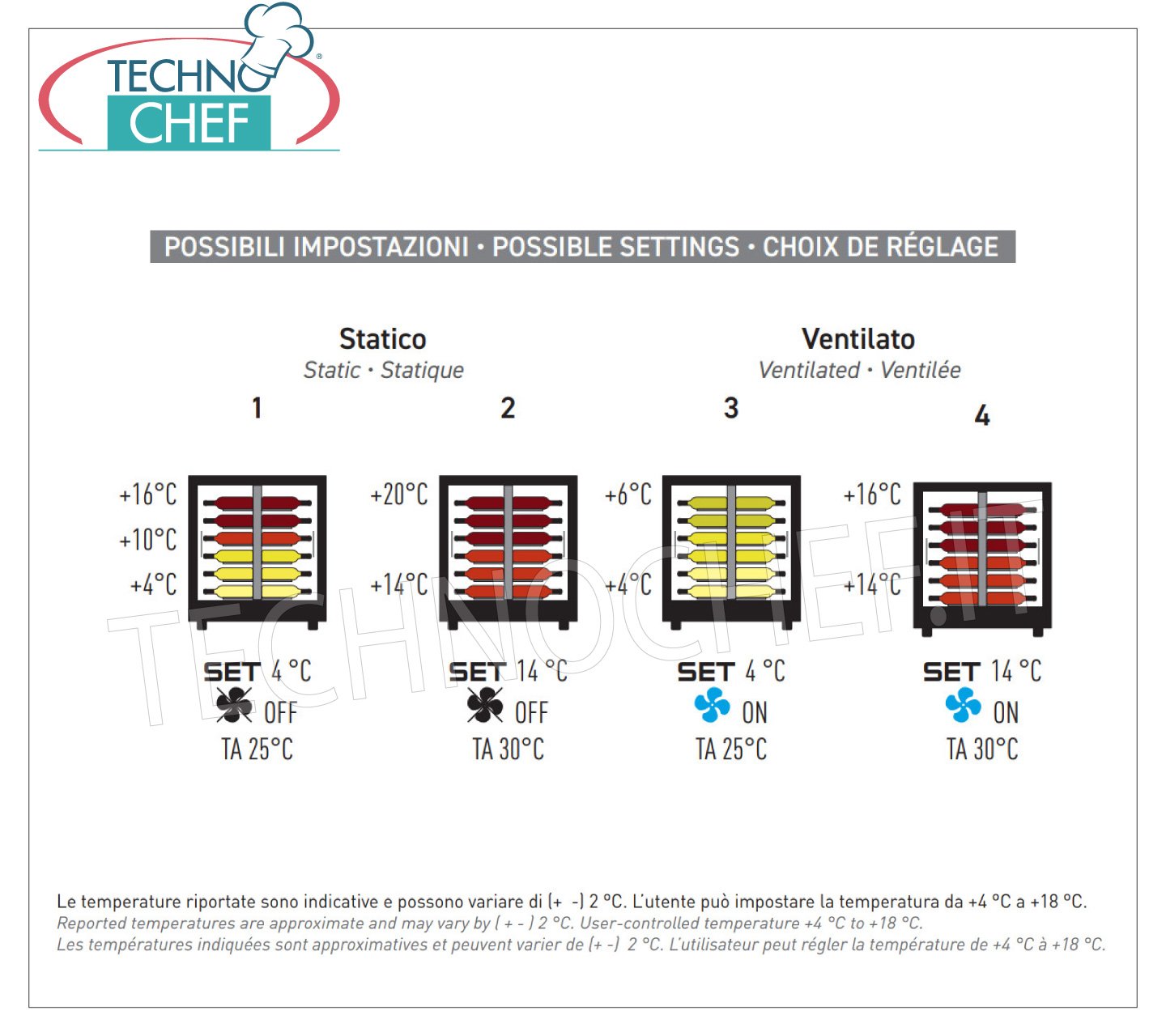

4 POSSIBILITIES OF USE CONFIGURABLE by the Customer
.

- STATIC MULTI-TEMPERATURE from +4° to +16°C for WHITE and RED wines ,

- STATIC MULTI-TEMPERATURE from +14° to +20°C for ROSS I wines ,

- VENTILATED for RED Wines with adjustable temperature from +14° to + 16° C ,

- VENTILATED for WHITE wines with adjustable temperature from +4° to +6° C;


.

Possible EQUIPMENTS, to be selected at the TIME of the Order in the PRODUCT SHEET .

.

- FRAME in RAW MDF , - MATT WHITE RAL-9010, - MATT BLACK RAL-9005, - GOLD VO1, SILVER VO2, - RAL 20 COLORS MATT LACQUERED, RAL 100 COLORS GLOSS LACQUERED


.

OPTIONAL/ACCESSORIES:

  • Colored LED lighting on the uprights with remote control

.

CE mark

Made in Italy

technical card
power supply
Monofase
Volts
V 230/1
frequency (Hz)
50
net weight (Kg)
59

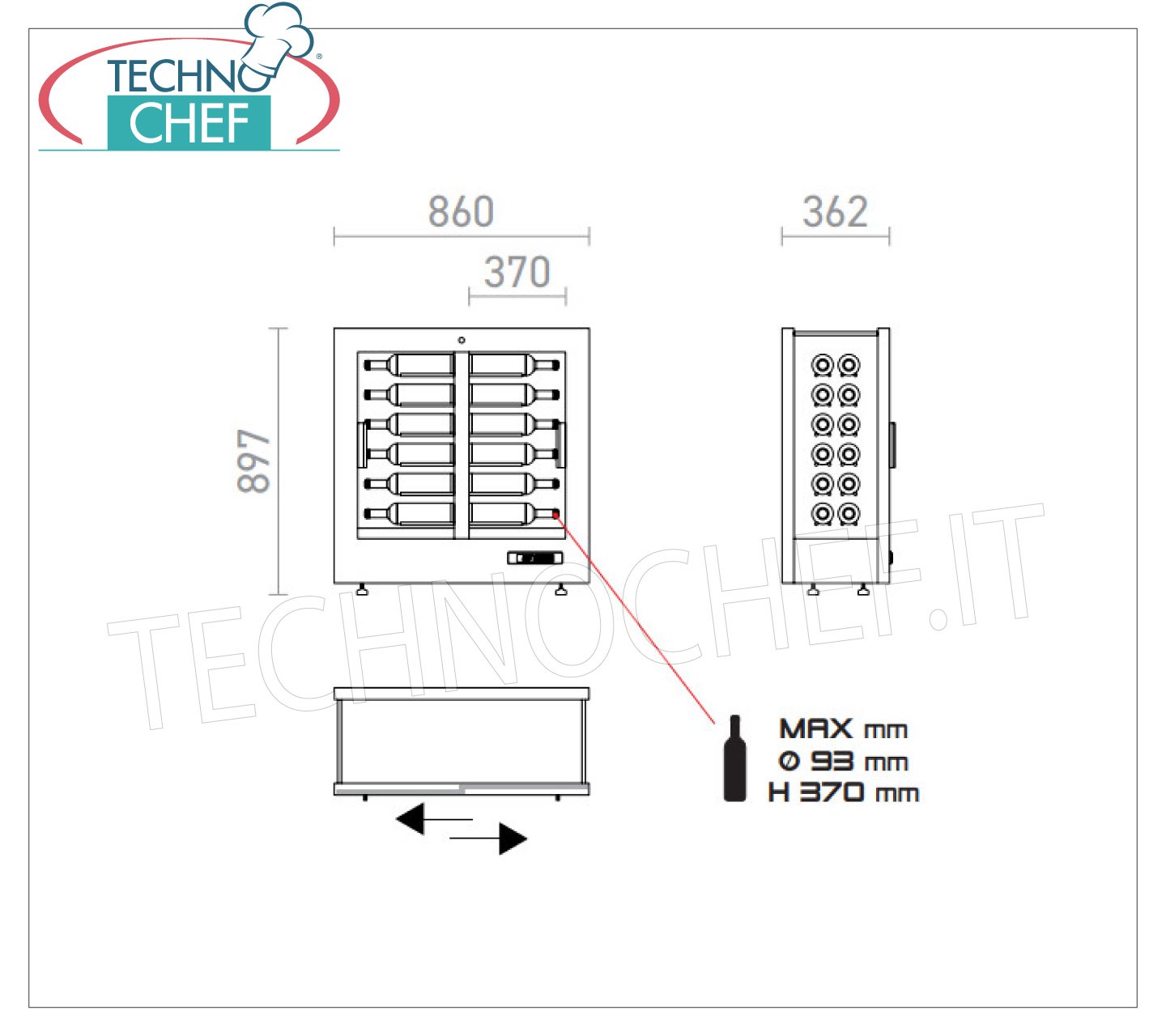

breadth (mm)
860
depth (mm)
362
height (mm)
897
acquista
Available models
EO-TV-H20-M01
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm Depth, Version with RAW MDF WOOD FRAME
WINE CASE with FRAME FRAME in RAW MDF WOOD, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V .230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.412,09
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-RAL9010
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with WOODEN FRAME in MATT WHITE color
WINE CABINET with FRAME in MATT WHITE WOOD, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V.230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.447,26
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-RAL9005
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with WOODEN FRAME in MATT BLACK color
WINE CABINET with FRAME in MATT BLACK WOOD, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V.230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.447,26
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-RAL20
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with WOODEN FRAME in RAL20 colors
WINE CABINET with WOODEN FRAME in RAL20 colours, 3 GLASS SIDES, cap.24 HORIZONTAL bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V.230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.799,03
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-V01
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with GOLD painted WOODEN FRAME
WINE CASE with GOLD painted WOODEN FRAME, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V .230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.799,03
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-V02
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with SILVER painted WOODEN FRAME
WINE CASE with SILVER painted WOODEN FRAME, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V .230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.799,03
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days
EO-TV-H20-RAL100
WINE CASE, 24 Bottles, Doors on 1 Front, 3 Glass Sides, SLIM Line, 36 cm deep, Version with WOODEN FRAME in RAL100 colors
WINE CASE with WOODEN FRAME in RAL100 colours, 3 GLASS SIDES, HORIZONTAL cap.24 bottles, STATIC or VENTILATED cold, temp.+4°/+16°C, for WHITE or RED WINES, doors on 1 front, V.230/1, Kw.0,15, Weight 59 Kg, dim.mm.860x362x897h
€ 3.799,03
VAT escluded
Shipping to be calculed
Delivery from 10 to 18 days

professional description

CELLAR-CASES for WINE, Capacity 24 Horizontal Bottles, STATIC or VENTILATED REFRIGERATION, suitable for WHITE or RED WINES, SLIM Line, 36 cm deep:


.

  • aluminum structure ,
  • interior in Aluminium,
  • sliding doors, sides and top in double glazing ,
  • ECOLGICO refrigeration unit with GAS R 600a
  • digital thermoregulator from: +4°+16°C ;
  • automatic defrost , automatic condensation evaporation,
  • inverter compressor ,
  • innovative refrigeration system based on the positioning of the cooling coil inside the refrigerated compartment behind the rear panel which guarantees better storage conditions ,
  • SLIDING glass DOORS on 1 FRONT ,
  • anti-fog system doors ;
  • natural white LED lighting on the uprights ,
  • key lock ,
  • anti-vibration system ,
  • Ambient Temperature: +25°, MAX for WHITE WINES
  • Ambient Temperature: +30°, MAX for RED WINES

.

4 POSSIBILITIES OF USE CONFIGURABLE by the Customer
.

- STATIC MULTI-TEMPERATURE from +4° to +16°C for WHITE and RED wines ,

- STATIC MULTI-TEMPERATURE from +14° to +20°C for ROSS I wines ,

- VENTILATED for RED Wines with adjustable temperature from +14° to + 16° C ,

- VENTILATED for WHITE wines with adjustable temperature from +4° to +6° C;


.

Possible EQUIPMENTS, to be selected at the TIME of the Order in the PRODUCT SHEET .

.

- FRAME in RAW MDF , - MATT WHITE RAL-9010, - MATT BLACK RAL-9005, - GOLD VO1, SILVER VO2, - RAL 20 COLORS MATT LACQUERED, RAL 100 COLORS GLOSS LACQUERED


.

OPTIONAL/ACCESSORIES:

  • Colored LED lighting on the uprights with remote control

.

CE mark

Made in Italy
